JSON API Tutorial
Introduction
With Unified Messaging, we also upgraded our available JSON APIs - integrating Userlike into your own platforms and workflows has never been easier. Below you find the general documentation as well as a detailed description of each API resource available.
We prepared some cURL-based examples. With the help of the cURL tool you can test drive our API quickly from the command line. This should give you a straightforward understanding how to use our API.
Topic | Description |
---|---|
Resource endpoints | Available resource endpoints of the JSON API |
Authentication | Accessing the API |
Request headers | Additional Request Headers |
Rate limits | API rate limits |
Result pagination | Number of results per requests to the list endpoint of a resource |
Result filtering | Filter list endpoints for specific resource items |
Searching resources | Search list endpoints for specific resource items |
Conversation resource | Work with conversation resources |
Note resource | Work with note resources |
Navigation events resource | Work with navigation event resources |
Contact resource | Work with contact resources |
Operator resource | Work with operator resources |
Fetching conversations that were recently created or updated | Syncing updates on conversations to your system |
Code samples | Working (python) code examples |
Resource endpoints
Currently, the following resource endpoints are available using the Userlike JSON API:
Resource endpoints | Description | Allowed methods |
---|---|---|
https://api.userlike.com/api/um/v3/conversations/
https://api.userlike.com/api/um/v3/conversations/all/
https://api.userlike.com/api/um/v3/conversations/{id}/
https://api.userlike.com/api/um/v3/conversations/{id}/messages/
|
List of conversations List of all conversations Single conversation Single conversation’s messages |
GET | DELETE
GET GET | DELETE GET |
https://api.userlike.com/api/um/v3/notes/
https://api.userlike.com/api/um/v3/notes/{id}/
|
List of notes
Single note |
GET | POST GET | DELETE |
https://api.userlike.com/api/um/v3/navigation/ |
List of navigation events |
GET |
https://api.userlike.com/api/um/v3/contact_identities/
https://api.userlike.com/api/um/v3/contact_identities/all/
https://api.userlike.com/api/um/v3/contact_identities/{id}/
|
List of contacts List of all contacts Single contact | GET | DELETE GET GET | PATCH | DELETE |
https://api.userlike.com/api/um/v3/operators/
https://api.userlike.com/api/um/v3/operators/{id}/
https://api.userlike.com/api/um/v3/operators/{id}/slots/
https://api.userlike.com/api/um/v3/operators/{id}/away/
|
List of operators
Single operator Single operator’s slot data Single operator’s away status |
GET
GET | PATCH | DELETE GET PATCH |
The specifics for each resource are described further below, after the introduction of the general features of the JSON API.
API versioning
Our APIs are constantly evolving, but we are striving to implement any new features in a backwards compatible way. If breaking changes are necessary, we will introduce a new API version. Examples for breaking changes are:
- Removing, renaming, or moving API entities.
- Changing or removing functionality.
- Making optional parameters or properties mandatory.
Non-breaking changes, like new endpoints or new optional properties, can happen anytime.
When we deprecate older versions of the API, we will provide at least 90 days of notice.
The current version of our JSON API is /v3/
, which was released July 15, 2022.
The previous version /v2/
will be disabled around October 15, 2022.
Changelog
To improve overall performance, we changed some things concerning the pagination of conversations and contact list endpoints.
/v3/
was introduced on July 22, 2022.
Changes applied with /v3/
:
- Limit maximum amount of conversations returned for GET request to the conversation list endpoint (
/api/um/v3/conversations/
) to 10,000 - Limit maximum amount of contacts returned for GET request to the contact list endpoint (
/api/um/v3/contact_identities/
) to 10,000 - Add new conversation all endpoint (
/api/um/v3/conversations/all/
) with cursor-based pagination that has no limit on the number of returned conversations - Add new contact all endpoint (
/api/um/v3/contact_identities/all/
) with cursor-based pagination that has no limit on the number of returned contacts - Change PATCH request schema for single endpoints. You can now pass data directly without wrapping it in
'{"update: {..}}"'
. - Remove option to update operator away status on the single endpoint. There now is a new endpoint to do that:
/api/um/v3/operators/{id}/away/
Authentication
All API requests must be authenticated with an API token, i.e. the API token must be passed as an authorization header with each request:
Userlike offers two types of authentication tokens: the "customer authentication token", allowing access to the resources of all organizations, and the "organization authentication token", allowing access to the resources of a single organization.
Organization authentication token
The organization authentication token gives you access to the resources (conversations, contacts, ...) of a single organization. You can find it in your Dashboard under **Chat tools** > **API settings**:

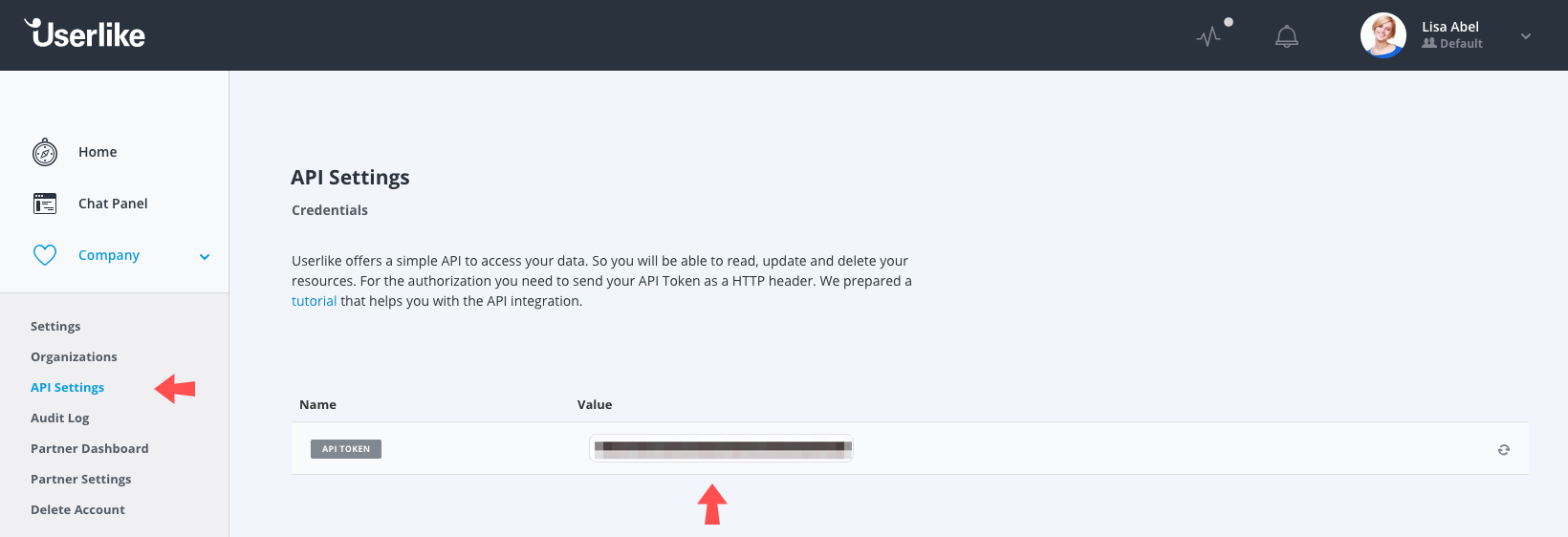

Customer authentication token
The customer authentication token by default gives you access to the resources (conversations, contacts, ...) of your default organization. You can find it in your Dashboard under **Account** > **API settings**:

But when you need to access the resources of a different organization, you can now simply provide the extra header "Userlike-organization-Id" with your request, there indicating the ID of the desired organization:

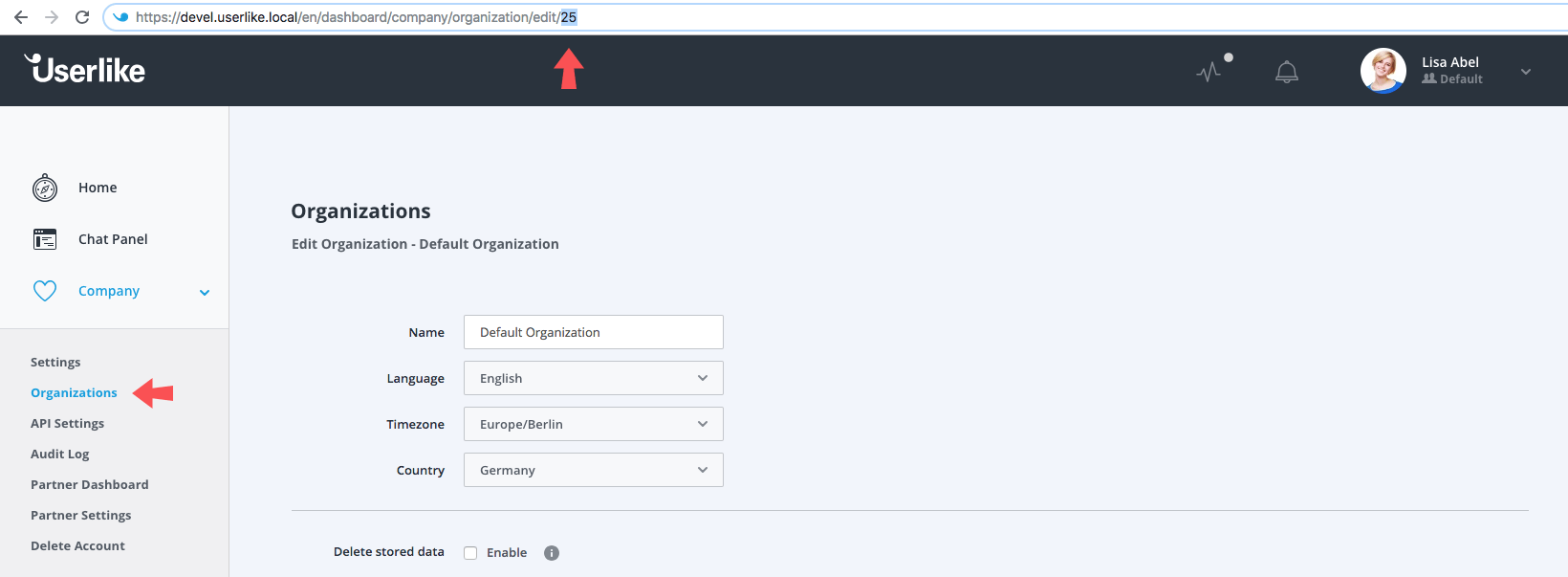

To find the ID of one of your organizations, go to **Account** > **Organizations** and start editing the respective organization. In the URL bar you can now see the ID of the organization:

If you provide a wrong organization ID, the request will again be made against your default organization resources.
Additional request headers
Content-Type: required for POST and PATCH requests
If you want to create a resource or update an existing one, you must specify the content type of your request as “application/json” and send a valid JSON body - otherwise your body data cannot be processed correctly. Use POST requests to create resources and PATCH requests to update existing ones.
USERLIKE-OPERATOR-ID: switching operator context
By default, API requests run in the context of the account’s operator. If you want to limit the privileges of requests made via the JSON API without affecting the capabilities of the owner, you can make your requests in the context of a less privileged operator.
In these cases we’d recommend the creation of a dedicated API operator, to whom you then assign a (customized) role with the desired set of capabilities. For all API request you can now send this operator’s ID by setting the custom "Userlike-Operator-Id" header:
All requests made this way will check for your API operator’s capabilities before performing any actions. This way you could ensure, for example, that no destructive operations are allowed via the API. Here you learn more about roles and capabilities.
API rate limits
Sustained throttling
You can make up to 5000 API requests per day to a specific resource of an organization. After the resource limit is reached, you’ll receive a response with HTTP status code 429.
Each resource has its own limit, as does each organization. This means that requesting conversations of organization A does not affect the count for requesting contacts from the same organization - nor does it affect the count for requesting conversations of organization B. The following three example calls all add to a different call counter:
In this context, requests for a specific resource of an organization (e.g. conversations) all add to the same count, no matter if they are made to the list or single endpoint, or what HTTP method is used. So a "DELETE" of a single conversation adds a hit to the same counter as does a "GET" to the same organization’s conversation list endpoint. The following three example calls all add to the same call counter:
Resource (per organization) | Methods | combined requests/day |
---|---|---|
https://api.userlike.com/api/um/v3/conversations/
https://api.userlike.com/api/um/v3/conversations/all/
https://api.userlike.com/api/um/v3/conversations/{id}/
|
GET | DELETE GET GET | PATCH | DELETE |
5000 |
https://api.userlike.com/api/um/v3/contact_identities/
https://api.userlike.com/api/um/v3/contact_identities/all/
https://api.userlike.com/api/um/v3/contact_identities/{id}/
|
GET | DELETE
GET GET | PATCH | DELETE |
5000 |
https://api.userlike.com/api/um/v3/navigation/ |
GET | 5000 |
https://api.userlike.com/api/um/v3/operators/
https://api.userlike.com/api/um/v3/operators/{id}/
https://api.userlike.com/api/um/v3/operators/{id}/slots/
https://api.userlike.com/api/um/v3/operators/{id}/away/
|
GET
GET | PATCH | DELETE GET PATCH |
5000 |
Burst throttling
On top of that, you may experience burst throttling if you send too many requests in a short time period. In this case you will also get a 429 response. You will be able to make another API call after waiting a few seconds.
Pagination
Depending on the endpoint, we use either limit offset or cursor-based pagination. Our standard list endpoints for conversations and contacts use offset pagination and support various sorting options. For performance reasons we limited the total amount of results that those endpoints can return to 10,000 in the `/v3/` API. For accessing all contacts or conversations of your organization we implemented new `/all/` endpoints that use cursor-based pagination.
Offset pagination
Endpoints with offset pagination can return a maximum of 10,000 results, but offer more flexible sorting. By default, you will get the 10 latest resource items that have been created. The result will also contain the total number of existing resource items and provide links to the previous and next results page (if applicable).
To get the next 10 resource items, you can now simply make your next API call using the “next” link.
You can adapt the page size to your needs and return more or less resource items per API call:
And if you need to start at a specific offset, you can of course also provide that:
The maximum page size is 100 resource items. If you provide a limit larger than that, we will fallback to this limit. Also, if you provide an offset larger than the actual number of existing resource items, you will receive an empty result set.
Cursor pagination
Our endpoints with cursor-based pagination always use plain IDs as cursors. You can provide us with a resource reference in the `cursor` query parameter and we will return resources that either come before or after the cursor, depending on which ordering query parameter you send. Responses you receive will have a next link and a previous link with the correct cursor set if there are resources that come before or after the results list. The next and previous link in the response will always have the same page size as the request.
Filtering
You can filter the results of each resource’s list endpoint. These filters are specific to each resource, so we’ll explain them for each resource further below. Here we’ll only highlight some details that apply to filters in general.
Ordering filter
By default, the list of resources returned by all list endpoints are sorted by their ID, in descending order - meaning that the most recently created resources are coming first.
For some resource list endpoints, you can provide an alternative ordering by providing the field by which the result list should be ordered. Prefixing the ordering field with a "-" (minus) sign will reverse the order from "ascending" to "descending":
For each resource list endpoint we’ll indicate which fields are available for alternative ordering.
Filters and pagination
Applying filters to an API requests means that the pagination is applied to the filtered result set, and the previous and next links provided in a filtered response will already have these filter set. This means that you can easily browse the single pages of a filtered result set by following these links.
Combining filters
You can apply more than one filter to an API request. The single filters are "ANDed" together, i.e. they will return all resource items that match each filter criterion.
The more filters you add, the more specific your request will be and chances are that there are no items matching all criteria.
Exclude IDs
For any requests, to any resource endpoints, you can provide a "blacklist" of resource IDs. Just provide a comma-separated string with all IDs you wish to exclude via the "exclude_ids" filter. Resource(s) thus specified will not be fetched, updated or deleted.
This allows for more effective bulk actions, e.g. fetching all conversations that are not assigned to one specific operator with only two API calls:
First you filter all conversation resources for the operator whose conversations you want to exclude, extracting the single conversation IDs from the result list. Then you make another call to the conversation list resource endpoint, providing this list of IDs to be excluded, as comma-separated value:
Delete IDs
For DELETE requests to list endpoints, you can provide a "whitelist" of resource IDs. Just provide a comma-separated string with all IDs you wish to delete via the "delete_ids" filter. Only the resource(s) thus specified will be deleted.
This allows for safer bulk delete actions, since only the specified IDs will be deleted, no matter what other filters or limits are provided:
Searching
Searching is really a special kind of filtering, available for the conversation and contact list endpoints. For each resource, certain fields will be searched and all matching results will be returned, ordered by a specific ranking. We will explain the individual fields and ranking for each resource below.
To search an endpoint for specific resources, simply add the "search_query" parameter to your request, followed by the search keyword:
Multiple keywords
You can search for multiple keywords in one request by providing the "search_query" parameter with a white-space separated value. Since you cannot use literal whitespaces in your request URLs, use one of the following encodings:
Encoding | Value | Example |
---|---|---|
"Percent" encoding | %20 |
?search_query=userlike%20gregor |
"Plus" encoding | + |
?search_query=userlike+gregor |
Multiple keywords are "ORed", meaning that a search for "userlike+gregor" will return results that match either the first or the second keyword:
Ranking
The ranking of all results matching your keyword(s) is determined by two factors: where the matching content was found and how often it was found. A match in a contact’s name ranks higher than a match in a contact’s notes, and three matches in one conversation rank higher than only one match in another.
Ranking factor | Example | Description |
---|---|---|
Weight |
A |
The ranking prominence follows the natural order of the letters, i.e. "A" ranks higher than "B" ranks higher than "C" |
Occurrence |
3 |
The more occurences, the higher the ranking |
The ranking of each resource’s search fields are described below.
Stemming and Prefix Search
When you provide a keyword, it is first reduced to its stem. After that we do a prefix search with the result. E.g. if you enter "users", we first reduce it to the word stem "user" and then do a prefix search with that. So it would return results for e.g. "userlike". Multiple keywords are all treated as prefixes as well:
Provided search keyword(s) | Actual search | |
---|---|---|
?search_query=user |
user* |
Matches "user", but also e.g. "userlike" |
?search_query=user+greg |
user* || greg* |
Matches e.g. "user", "userlike", "greg" or "gregor" |
Keep this in mind if your search returns too many (undesired) results, and provide more specific search keyword(s).
Conversation resource
Resource endpoints | Description | Allowed methods |
---|---|---|
https://api.userlike.com/api/um/v3/conversations/
https://api.userlike.com/api/um/v3/conversations/all/
https://api.userlike.com/api/um/v3/conversations/{id}/
https://api.userlike.com/api/um/v3/conversations/{id}/messages/
|
List of conversations (limited) List of all conversations Single conversation Single conversation’s messages |
GET | DELETE
GET GET | DELETE GET |
Conversation list endpoint - GET
Fetch a list of conversations you had with your contacts. The response will return a JSON object with a results array, by default containing the last 10 conversations that were created. This endpoint uses offset pagination. Results are limited to a maximum of 10,000, but there are options to get the latest conversation. If you need to access all of your organization’s conversations, please use the all conversations endpoint. This endpoint is useful to get recently created or updated conversations.
The conversation resource items returned by the list endpoint only contain the last message of the conversation. If you want to get all messages of a conversation, you must make a request to the conversation messages endpoint. We’ll show you how to do that further below.
Conversation all list endpoint - GET
Conversations in this endpoint have the same format as conversations from the normal conversation list endpoint, but this endpoint has cursor-based pagination and allows access to all conversations in your organization and an unlimited number of results. This endpoint only allows `id` ordering and has the same filter options as the normal conversation list endpoint. The conversation `id` is used as a cursor.
Conversation list endpoint - DELETE
Delete a list of conversations you had with your contacts. The response contains no data and has the HTTP status 204.
Conversation list endpoint filters
The conversation list endpoint lets you filter its resources for the following fields:
Field | Sample value | Description |
---|---|---|
contact_uuid |
MGEwYWJmZmEtN2M1OS01NGI2LWE2OWYtZWYxNDY4OWM0YWQ3 |
Get all conversations you had with a specific contact |
operator_id |
23 |
Get all conversations of a specific operator by their ID |
status |
pending |
Get all conversations you assigned a certain status |
topics |
Support |
Get all conversations you assigned a certain topic label to |
um_widget_id |
42 |
Get all conversations that were conducted (at least partially) via a specific Widget. |
contact_first_message_to_date |
2018-09-22T14:01:54.9571247Z |
Get all conversations where the first contact message was sent before a specific time |
contact_first_message_from_date |
2018-09-22T14:01:54.9571247Z |
Get all conversations where the first contact message was sent after a specific time |
contact_last_message_to_date |
2018-09-22T14:01:54.9571247Z |
Get all conversations where the last contact message was sent before a specific time |
contact_last_message_from_date |
2018-07-22T14:01:54.9571247Z |
Get all conversations where the last contact message was sent after a specific time |
updated_at_to_date |
2018-09-22T14:01:54.9571247Z |
Get all conversations in which the last update happened before a specified time. New messages count as updates. |
updated_at_from_date |
2018-07-22T14:01:54.9571247Z |
Get all conversations in which the last update happened after a specified time. New messages count as updates. |
id__gt |
935673 |
Get all conversations with an ID greater than the one specified. |
id__lt |
935673 |
Get all conversations with an ID smaller than the one specified. |
contact_identity_id |
20 |
Get all conversations that belong to a specific contact |
You can use these filters alone or in combination to extract exactly the resource items you need.
You can also use these filters to immediately delete the filtered resource items.
Make sure you also read the general remarks on result filtering.
Conversation list endpoint searching
The conversation list endpoint lets you search its resources by matching your search keyword(s) against certain data fields of or related to your conversations. If your keyword(s) match(es) any of the contents of the following fields, the respective conversation will be part of the result set:
Field | Ranking | Description |
---|---|---|
Contact's name |
A |
Get all conversations whose contact’s name matches the keyword |
Contact's email |
A |
Get all conversations whose contact’s email matches the keyword |
Contact's street |
A |
Get all conversations whose contact’s street name matches the keyword |
Contact's city |
A |
Get all conversations whose contact’s city matches the keyword |
Conversation messages |
C |
Get all conversations whose messages matches the keyword |
We intentionally rank matches in the associated contacts' data higher than matches in the conversations' own content, since that data is much more structured and qualified.
You can also use the search feature to immediately delete the matching conversations:
Make sure you also read the general remarks on resource searching.
Conversation list endpoint ordering
The conversation list endpoint results can be alternatively ordered by the following fields:
Field | Value | Description |
---|---|---|
ordering |
id |
Order the conversations according to their IDs, in ascending order (oldest first). |
ordering |
-id |
Order the conversations according to their IDs, in descending order (newest first). |
ordering |
last_message_sent_at |
Order the conversations according to when the last message was sent, in ascending order (oldest first). |
ordering |
-last_message_sent_at |
Order the conversations according to when the last message was sent, in descending order (latest first). |
ordering |
contact_first_message_sent_at |
Order the conversations according to when the contact first interacted with them, in ascending order (oldest first). |
ordering |
-contact_first_message_sent_at |
Order the conversations according to when the contact first interacted with them, in descending order (latest first). |
ordering |
contact_last_update_at |
Order the conversations according to when its contact was last updated, in ascending order (oldest first). |
ordering |
-contact_last_update_at |
Order the conversations according to when their contact was last updated, in descending order (latest first). |
ordering |
contact_last_message_sent_at |
Order the conversations according to when the contact last interacted with them, in ascending order (oldest first). |
ordering |
-contact_last_message_sent_at |
Order the conversations according to when the contact last interacted with them, in descending order (latest first). |
Make sure you also read the general remarks on result filtering.
Conversation single endpoint - GET
Fetch a specific conversation you had with one of your contacts by providing its ID.
If you need the full conversation data for a specific set of conversations, first filter the resource items accordingly using the list endpoint. Then use the conversation IDs you get from the filtered result set to fetch the single resource items, which will contain the full data.
Conversation single endpoint - DELETE
Delete a specific conversation you had with one of your contacts by providing its ID. Response contains no data and has HTTP status 204.
Conversation messages endpoint - GET
Fetch the messages for a specific conversation you had with one of your contacts by providing its ID. The response will return a JSON object with a results array, by default containing the last 100 messages that were created.
Retrieve uploaded files
Messages of type upload
and their attached media file provide an url
field to which you can make a GET request.
As a response, you will get a JSON object with detailed meta data of this media file, including the actual URL to retrieve the binary data:
Use the new url
for another GET
request to retrieve the binary data.
Conversation messages endpoint filters
The conversation messages endpoint lets you filter its resources for the following fields:
Field | Sample value | Description |
---|---|---|
type |
notification |
Get all messages of a specific type |
sender_type |
contact |
Get all messages from a specific sender type |
event |
welcome_message |
Get all messages from a specific event |
You can use these filters alone or in combination to extract exactly the resource items you need.
The following values can be used to filter by `type`:
Value | Description |
---|---|
notification |
Get all messages of type notification |
upload |
Get all messages of type upload |
co |
Get all messages sent by contact |
ct |
Get all messages sent to contact |
link |
Get all messages of type link (eg. a link was sent in the conversation) |
call_event |
Get all messages relating to audio/video call events (eg. "call finished") |
call_offer |
Get all messages relating to audio/video call offers (a call was offered to the contact by an operator) |
Make sure you also read the general remarks on result filtering.
Conversation messages endpoint pagination
The conversation messages endpoint uses cursor based pagination with a maximum page size of 100 messages. For more information see pagination details
Conversation messages endpoint ordering
The conversation messages endpoint results can alternatively be ordered by the following fields:
Field | Value | Description |
---|---|---|
ordering |
id |
Order the conversation messages according to their ID, in ascending order (oldest first). |
ordering |
-id |
Order the conversation messages according to their ID, in descending order (latest first). |
Make sure you also read the general remarks on result filtering.
Note resource
Resource endpoints | Description | Allowed methods |
---|---|---|
https://api.userlike.com/api/um/v3/notes/ https://api.userlike.com/api/um/v3/notes/{id}/ |
List of notes Single note |
GET | POST GET | DELETE |
Note list endpoint - GET
Fetch a list of notes. The response will return a JSON object with a results array, by default containing the last 10 notes that were created. The response JSON further contains pagination details.
There are two types of notes: notes on conversations and notes on contacts. Notes on conversations have a non-null conversation_id
, while notes on contacts have a non-null contact_identity_id
.
To learn how to fetch the notes for a specific conversation or a specific contact, please see the section on filtering the note list endpoint.
Note list endpoint filters
The note list endpoint lets you filter its resources for the following fields:
Field | Sample value | Description |
---|---|---|
conversation_id |
42 |
Get all notes you added to a specific conversation |
contact_identity_id |
23 |
Get all notes you added to a specific contact |
Combining these filter would always result in an empty response, as notes either have a conversation_id
or a contact_identity_id
.
Make sure you also read the general remarks on result filtering.
Note list endpoint ordering
The note list endpoint results are sorted by their ID, in descending order - meaning that the most recently created notes are coming first.
Note list endpoint - POST
To create a note for either of the two types, conversation or contact, one of those fields needs to be included in the request body data: conversation_id
or contact_identity_id
.
Passing both fields in one request will result in an error response.
On success, a JSON object with the newly created note will be returned.
The request body data for conversation notes allows the following fields:
Field | Sample value | Description |
---|---|---|
conversation_id |
50670 |
Conversation ID |
body |
My new note |
Note content |
msgid |
2017.2522.14138 |
Optional reference to a message. If given, the note will appear below that message inside the conversation transcript. Otherwise it will only be shown in the note list on the side. |
The request body data for contact notes should contain the following fields:
Field | Sample value | Description |
---|---|---|
contact_identity_id |
981164 |
ID of the contact the note refers to |
body |
My new note |
Note content |
Note single endpoint - GET
Fetch a specific note by providing its ID.
Note single endpoint - DELETE
Delete a specific note by providing its ID. Response contains no data and has the HTTP status 204.
Navigation event resource
Resource endpoints | Description | Allowed methods |
---|---|---|
https://api.userlike.com/api/um/v3/navigation/ |
List of navigations |
GET |
Navigation events endpoint - GET
Fetch all navigation events that a contact triggered. You can either use the conversation_id
query parameter to get all navigation
events that happened during a specific conversation, or you can use the contact_identity_id
query parameter to get all navigation
navigation events a contact triggered. Please note that either conversation_id
or contact_identity_id
needs to be set.
Navigation events endpoint filters
The navigation events endpoint lets you filter its resources for the following fields:
Field | Sample value | Description |
---|---|---|
type |
id__lt |
Get navigation events withs ids less than the given value |
type |
id__gt |
Get navigation events withs ids greater than the given value |
type |
created_at__lt |
Get navigation events that were created before the given date |
type |
created_at__gt |
Get navigation events that were created after the given date |
type |
created_at__lte |
Get navigation events that were created before the given date or exactly on the given date |
type |
created_at__gte |
Get navigation events that were created after the given date or exactly on the given date |
Make sure you also read the general remarks on result filtering.
Navigation events endpoint pagination
The default page size is 100, the maximum page size we allow is 1000. You can specify a custom page size
by using the page_size
query parameter.
All results contain a count_earlier
and count_later
key, which tells you if
you fetched all events available.
In order to get a full list of navigation events, you can use the filters described above together with the
ordering
query parameter.
Navigation events endpoint ordering
The navigation events endpoint results can alternatively be ordered by the following fields:
Field | Value | Description |
---|---|---|
ordering |
id |
Order the navigation events according to their ID, in ascending order (oldest first). |
ordering |
-id |
Order the navigation events according to their ID, in descending order (latest first). |
Make sure you also read the general remarks on result filtering.
Contact resource
Resource endpoints | Description | Allowed methods |
---|---|---|
https://api.userlike.com/api/um/v3/contact_identities/
https://api.userlike.com/api/um/v3/contact_identities/all/
https://api.userlike.com/api/um/v3/contact_identities/{id}/
|
List of contacts
List of all contacts Single contact |
GET | DELETE GET GET | PATCH | DELETE |
Contact list endpoint - GET
Fetch a list of contacts. Returns a JSON object with a results array, by default containing the last 10 contacts that have been created. This endpoint uses offset pagination. Results are limited to a maximum of 10,000. You can use this endpoint to get recently created or updated contacts. If you need to access all of your organization’s contacts, please use the all contacts endpoint. The response JSON further contains pagination details.
Contact all list endpoint - GET
Contacts in this endpoint have the same format as contacts from the normal contact list endpoint, but this endpoint has cursor-based pagination and allows access to all contacts in your organization with an unlimited number of results. This endpoint only allows `id` ordering and has the same filter options as the normal contact list endpoint. The contact `id` is used as a cursor.
Contact list endpoint - DELETE
Delete a list of contacts. The response contains no data and has HTTP status 204.
Contact list endpoint filters
The contact list endpoint lets you filter its resources for the following fields:
Field | Sample value | Description |
---|---|---|
id |
23 |
Get the contact matching the given ID |
email |
david@userlike.com |
Get the contact with the specified email |
name |
David Voswinkel |
Get all contacts matching a specific name |
to_date_time |
2018-09-22T14:01:54.9571247Z |
Get all contacts that were active before a specific time |
from_date_time |
2018-07-22T14:01:54.9571247Z |
Get all contacts that were active after a specific time |
verified |
true |
Get all contacts that have a verified email or mobile number |
locale |
en_US |
Get all contacts that match the given locale |
You can use these filters to extract exactly the resource items you need.
You can also use these filters to immediately delete the filtered resource items.
Make sure you also read the general remarks on result filtering.
Contact list endpoint searching
The contact list endpoint lets you search its resources by matching your search keyword(s) against certain data fields of your contacts. If your keyword(s) match(es) any of the contents of the following fields, the respective contact will be part of the result set:
Field | Ranking | Description |
---|---|---|
Contact's name |
A |
Get all conversations whose contact’s name matches the keyword |
Contact's email |
A |
Get all conversations whose contact’s email matches the keyword |
Contact's street |
A |
Get all conversations whose contact’s street name matches the keyword |
Contact's city |
A |
Get all conversations whose contact’s city matches the keyword |
Contact's country |
A |
Get all conversations whose contact’s country matches the keyword |
Contact's notes |
B |
Get all conversations where your notes about the contact matches the keyword |
An example contact search:
You can also use the search feature to immediately delete the matching contacts:
Make sure you also read the general remarks on resource searching.
Contact list endpoint ordering
The contact list endpoint results can be alternatively ordered by the following fields:
Field | Value | Description |
---|---|---|
ordering |
created_at |
Order the contacts according to when they were created, in ascending order (oldest first). |
ordering |
-created_at |
Order the contacts according to when they were created, in descending order (latest first). |
ordering |
name |
Order the contacts by their names, in ascending order (A-Z). |
ordering |
-name |
Order the contacts by their names, in descending order (Z-A). |
ordering |
email |
Order the contacts by their email, in ascending order (A-Z). |
ordering |
-email |
Order the contacts by their email, in descending order (Z-A). |
Make sure you also read the general remarks on result filtering.
Contact single endpoint - GET
Fetch a specific contact by providing its ID. The returned JSON object contains the full contact representation.
Contact single endpoint - PATCH
Update certain data of a specific contact. The returned JSON object contains the full and updated contact.
The following fields can be updated:
Field | Sample value | Description |
---|---|---|
email |
my.contact@customer.com |
Update the contact’s email address |
name |
"Jane Doe" |
Update the contact’s name |
salutation |
"mrs" |
Update how the contact whishes to be saluted |
gender |
"f" |
Update the contact’s gender |
street |
"Sunset Blvd" |
Update the contact’s street |
city |
"Cologne" |
Update the contact’s city |
country |
"DE" |
Update the contact’s country, providing a valid two-digit iso code. |
phone_number |
"+49521234567" |
Update the contact’s phone number |
mobile_number |
"+49521234567" |
Update the contact’s mobile number |
contact_by_phone |
True |
Update if the contact wants to be contacted via phone |
contact_by_email |
True |
Update if the contact wants to be contacted via email |
contact_by_userlike_messenger |
True |
Update if the contact wants to be contacted via the Website Messenger |
contact_by_userlike_channels |
True |
Update if the contact wants to be contacted via channels |
url_facebook |
"https://facebook.com/xy" |
Update the contact’s Facebook URL |
url_twitter |
"https://twitter.com/xy" |
Update the contact’s Twitter URL |
url_linkedin |
"https://linkedin.com/xy" |
Update the contact’s Linkedin URL |
url_profile_picture |
"https://url_profile_picture.com/xy" |
Update the contact’s profile picture URL |
external_customer_id |
"123" |
Update the contact’s external id |
You can update one or more of these fields with a single patch request.
In contrast to a single conversation, you can update nearly all fields of a contact via the API. This allows you to enrich your Userlike contacts with data from another CRM system you might have, for example.
Contact single endpoint - DELETE
Delete a specific contact by providing its ID. Response contains no data and has HTTP status 204.
Operator resource
Resource endpoints | Description | Allowed methods |
---|---|---|
https://api.userlike.com/api/um/v3/operators/
https://api.userlike.com/api/um/v3/operators/{id}/
https://api.userlike.com/api/um/v3/operators/{id}/slots/
https://api.userlike.com/api/um/v3/operators/{id}/away/
|
List of operators
Single operator Single operator’s slot data Single operator’s away status |
GET
GET | PATCH | DELETE GET PATCH |
In contrast to the other resources, the operator resource’s list endpoint does not offer bulk deletion. This is to prevent destructive API calls that could seriously affect the operation of your Userlike account.
Operator list endpoint - GET
Fetch a list of operators. Returns a JSON object with a results array, by default containing the last 10 operators that have been created, including their current chat slot utilization. The response JSON further contains pagination details.
Operator list endpoint filters
The operator list endpoint lets you filter its resources for the following fields:
Field | Sample value | Description |
---|---|---|
id |
23 |
Get the operator matching the given ID |
email |
david@userlike.com |
Get the operator with the specified email |
name |
David Voswinkel |
Get all operators matching a specific name |
operator_group_id |
132 |
Get all operators belongig to a specific operator group |
You can use these filters to extract exactly the resource items you need.
Make sure you also read the general remarks on result filtering.
Operator list endpoint ordering
The operator list endpoint results can be alternatively ordered by the following fields:
Field | Value | Description |
---|---|---|
ordering |
created_at |
Order the operators according to when they were created, in ascending order (oldest first). |
ordering |
-created_at |
Order the operators according to when they were created, in descending order (latest first). |
ordering |
name |
Order the operators by their names, in ascending order (A-Z). |
ordering |
-name |
Order the operators by their names, in descending order (Z-A). |
ordering |
email |
Order the operators by their email, in ascending order (A-Z). |
ordering |
-email |
Order the operators by their email, in descending order (Z-A). |
Make sure you also read the general remarks on result filtering.
Operator single endpoint - GET
Fetch a specific operator by providing its ID. The returned JSON object contains the full operator representation, including operator group and organization.
Operator single endpoint - PATCH
Make various changes to a specific operator.
You can use the PATCH method to update an operator’s out of office status or notification settings. The response will have the format of the slot view as described below.
The following fields can be updated:
Field | Sample value | Description |
---|---|---|
um_notification_message_receive |
true |
Turn browser notification for new messages on or off |
um_notification_chat_session_forward |
true |
Turn browser notification for reassigned conversations on or off |
um_notification_conversation_rating |
true |
Turn browser notification for conversation ratings on or off |
um_notification_conversation_feedback |
true |
Turn browser notification for conversation feedback on or off |
um_notification_conversation_post_survey |
true |
Turn browser notification for post-conversation surveys on or off |
um_notification_conversation_goal |
true |
Turn browser notification for reached Widget goals on or off |
um_notification_conversation_end |
true |
Turn browser notification for ended conversations on or off |
um_notification_conversation_offline_assigned |
true |
Turn browser notification for assigned offline conversations on or off |
um_notification_conversation_live |
true |
Turn browser notification for incoming live conversations on or off |
um_notification_conversation_not_live |
true |
Turn browser notification for timeout being reached in a conversation on or off |
um_notification_conversation_end_own |
true |
Turn browser notification for own conversation ending on or off |
um_notification_conversation_feedback_own |
true |
Turn browser notification for feedback in own conversations on or off |
um_notification_conversation_goal_own |
true |
Turn browser notification for Widget goals reached in own conversations on or off |
um_notification_conversation_offline_unassigned |
true |
Turn browser notification for unassigned conversations on or off |
um_notification_conversation_started |
true |
Turn browser notification for conversation started or resumed on or off |
um_notification_conversation_post_survey_own |
true |
Turn browser notification for post-conversation survey answers in own conversations on or off |
um_notification_conversation_rating_own |
true |
Turn browser notification for ratings on own conversations on or off |
um_notification_operator_availability |
true |
Turn browser notification for operator status changes on or off |
sound_connect |
true |
Turn sound notification for operator connecting to UMC on or off |
sound_disconnect |
true |
Turn sound notification for operator disconnecting from UMC on or off |
sound_message_new |
true |
Turn sound notification for new message being received in a conversation on or off |
sound_operator_off |
true |
Turn sound notification for operator going offline on or off |
sound_operator_on |
true |
Turn sound notification for operator going online on or off |
sound_conversation_live |
true |
Turn sound notification for received live conversations on or off |
sound_conversation_offline |
true |
Turn sound notification for received offline conversations on or off |
notification_mute |
true |
Mute or unmute all notifications |
out_of_office |
true |
Turn out of office mode on or off |
You can update one or more of these fields with a single PATCH request.
Operator single endpoint - change operator status
You can toggle an operator’s availability between **online** and **away** by making a PATCH request. The response contains the operator’s slot data and has the HTTP status code 200.
Operator single endpoint - DELETE
Delete a specific operator by providing its ID. The response contains no data and has HTTP status 204.
Since deleting an operator can affect the operation of your Userlike account, we take some precautions to prevent you from causing serious harm when making a DELETE call.
We make sure that you do not accidentally:
- Delete the Owner of your Userlike account
- Delete the operator making the request (which in most cases is the Owner)
- Delete the last operator of an organization
When you make a call that would cause one of these actions, you’ll instead get a 403 status response, indicating your request was denied. In the JSON body you’ll find the details on why it was denied.
Operator single endpoint - slot view
For single operator resource items, we offer an additional endpoint that only returns the specific operator’s slot data when making a GET request to it. Apart from that, all other requests behave exactly the same as those to the regular operator resource single endpoint.
Use this reduced "view" on a specific operator’s chat slot utilization if all you need is this subset of the operator’s data. For example, when you are using the JSON API to sync your operators' chat availability with an external support system.
The fields of an operator’s slot data are:
Field | Description |
---|---|
availability |
The operator’s presence status, combined from the fields "available" and "connected". Its value can be "available", "unavailable" or "offline". |
available |
Whether the operator is available to chat |
connected |
Whether the operator is currently connected to the Message Center |
free |
Number of free chat slots |
used |
Number of used chat slots |
total |
Number of the operator’s total chat slots |
Fetching conversations that were recently created or updated
Since this is a common use case we wrote this section to explain the best ways to keep conversations in your system in sync with changes on our side.
To get all conversations created or updated in a certain timeframe, use the updated_at_from_date
and updated_at_to_date
filters. Whenever changes are made to the conversation or a message
is sent in it, this timestamp is updated.
Python Examples
We prepared a few examples on how to access the Userlike API using Python. It’s pretty straightforward, we use the Python library "requests" for the HTTP requests, always adding the required Authorization headers.
Simple example: fetch last conversations
This basic example shows you how to retrieve the list of the latest 10 conversations you had with your customers with a small Python script.
Slightly more complex example: add phone numbers from your CRM to contacts in Userlike
This larger example shows you how to work with different endpoints and request types to fulfill a task.
Imagine the following use case: you want to automatically add phone numbers from your CRM to the contacts in Userlike.
For this, you first have to get the ID of each customer by filtering the contact resource endpoint with their email address. Then, you have to update the contacts by sending patch requests to each individual contact resource endpoint.
