Data Integration Tutorial

This tutorial refers to Userlike’s live chat product. For Userlike’s Unified Messaging tutorials, click here.

Userlike features an open data system that provides advanced options to tailor your chat setup to your specific business case. It allows you to control, track, send data to, and extract data from your chat system. This tutorial explains the possibilities and offers you directions for all data-related topics.

Controlling the chat

To make the chat interact with your unique type of Webvisitors in the way you want it to you can set up an advanced chat behavior. Our open API gives you full control.

Remote API

The right timing and the way a chat session is started are vital for a successful conversation. If you are running an eCommerce website, you want to let your Webvisitors browse your offerings without interruptions while you stand by to assist. But when you find them stuck with a filled shopping cart during checkout, you want to be proactive and offer help.

Our Remote API is exactly made for these cases. It lets you define chat action triggers for specific situations so you can address your Webvisitors appropriately. This way, your business logic can "remotely" select the best chat mode instead of you relying on a one-size-fits-all approach.

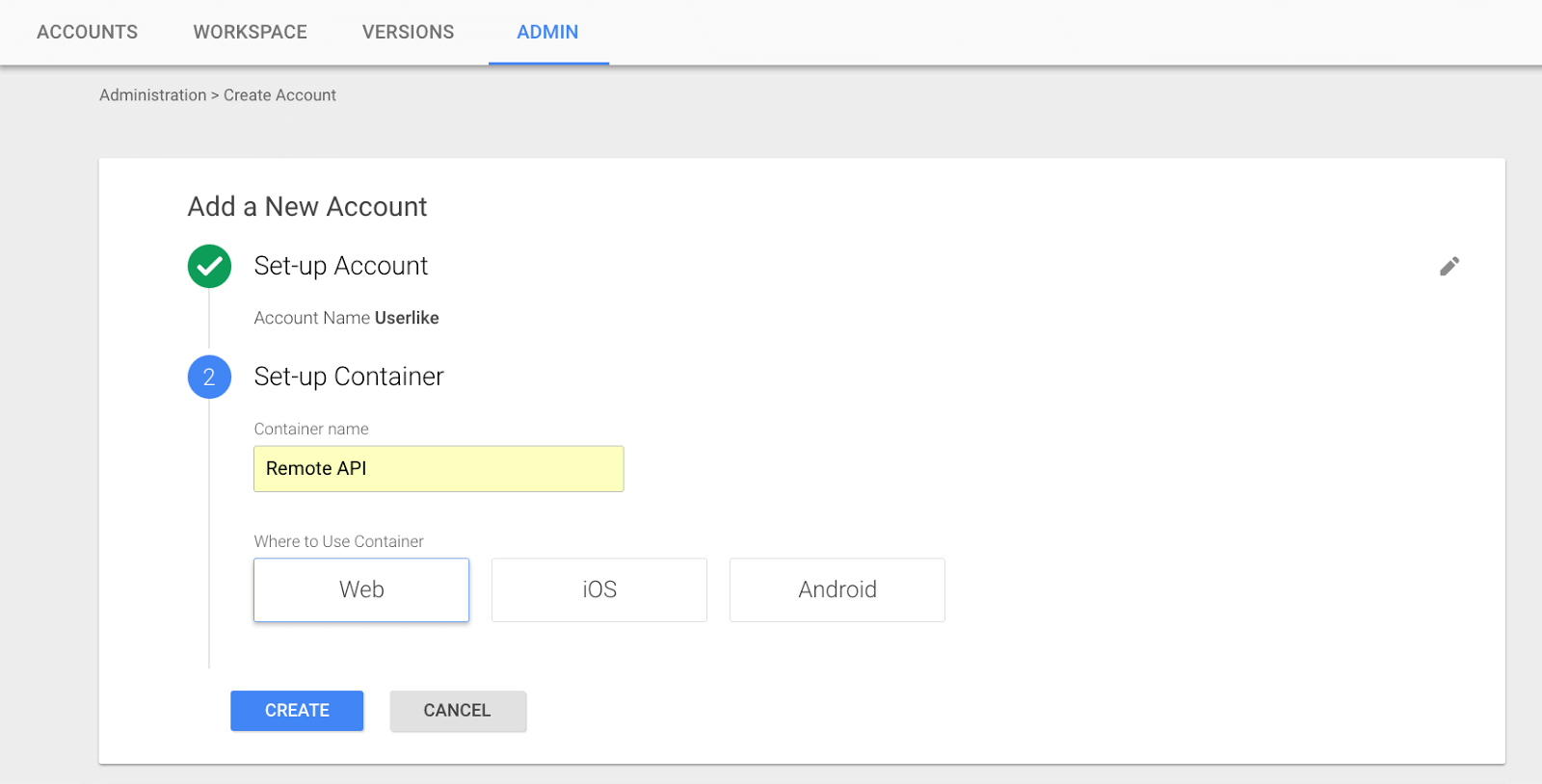

Google Tag Manager

Consider integrating Userlike with the Google Tag Manager if you want to enable your non-technical staff to control how your chat behaves on different parts of your site.

Learn from our Google Tag Manager tutorial how to set up an integration that triggers the chat differently, depending on whether your Webvisitor is currently in the checkout process or not.

Once set up, changing or extending the behavior of your Widgets for different pages on your website becomes a lot easier. Especially if you use the Tag Manager with our Remote API. Widget setup does not require technical staff for most changes.

Operator status API

Sometimes another application demands the full attention of your Operators, like an incoming phone call. If your staff constantly works separate support channels, consider using our Operator status API to improve their workflow and tighten channel integration.

For example, set up your telephone system to update your Operators' availability status using the API. This way, an Operator answering a phone call is automatically set to "Away" in the Chat Panel and doesn't receive any new chat sessions while on the phone. After the call, your system then sets the status back to "Online".

Injecting data into the chat

Another use of our API is to push external data of Webvisitors, yourself or third party applications into the chat system. Such valuable context information will help your Operators deliver better support. Read more.

Register approach

With registration mode enabled, your Webvisitors are asked to provide certain data before starting to chat. If you want to match your Webvisitors against your own customer database, for example, you can ask for their customer ID so your Operator has it at hand when starting the chat.

You can activate "Registration Chat" by selecting a Widget in the Widget overview and entering the "Behavior" tab. The standard options are name and email, but you can add custom fields, such as Webvisitors' phone numbers or their customer IDs.

This data is not only available for your Operator in the Chat Panel, but also stored with the chat transcript and thus available for later follow ups. It is also included when you pull your chat transcripts using our API.

Facebook register approach

This mode is an extension of the normal Registration Chat. Instead of manually entering the contact data, your Webvisitor can provide you with his name and email by logging in to the chat with a Facebook account.

Custom data

Knowing what a Webvisitor has in his shopping cart or how long he’s been around in your backend can be handy information for your Operators. These and whatever data from your system would be useful during your live chat service – you can send it to Userlike.

All custom data is not only available for your Operator in the Chat Panel but also stored with the chat transcript and thus available for later follow ups. It is also included when you pull your chat transcripts using our API.

Extracting data from the chat

Just as it is possible to insert data into your chat system, it is also possible to extract data and optionally send it to other destinations. This simplifies both follow ups and analysis.

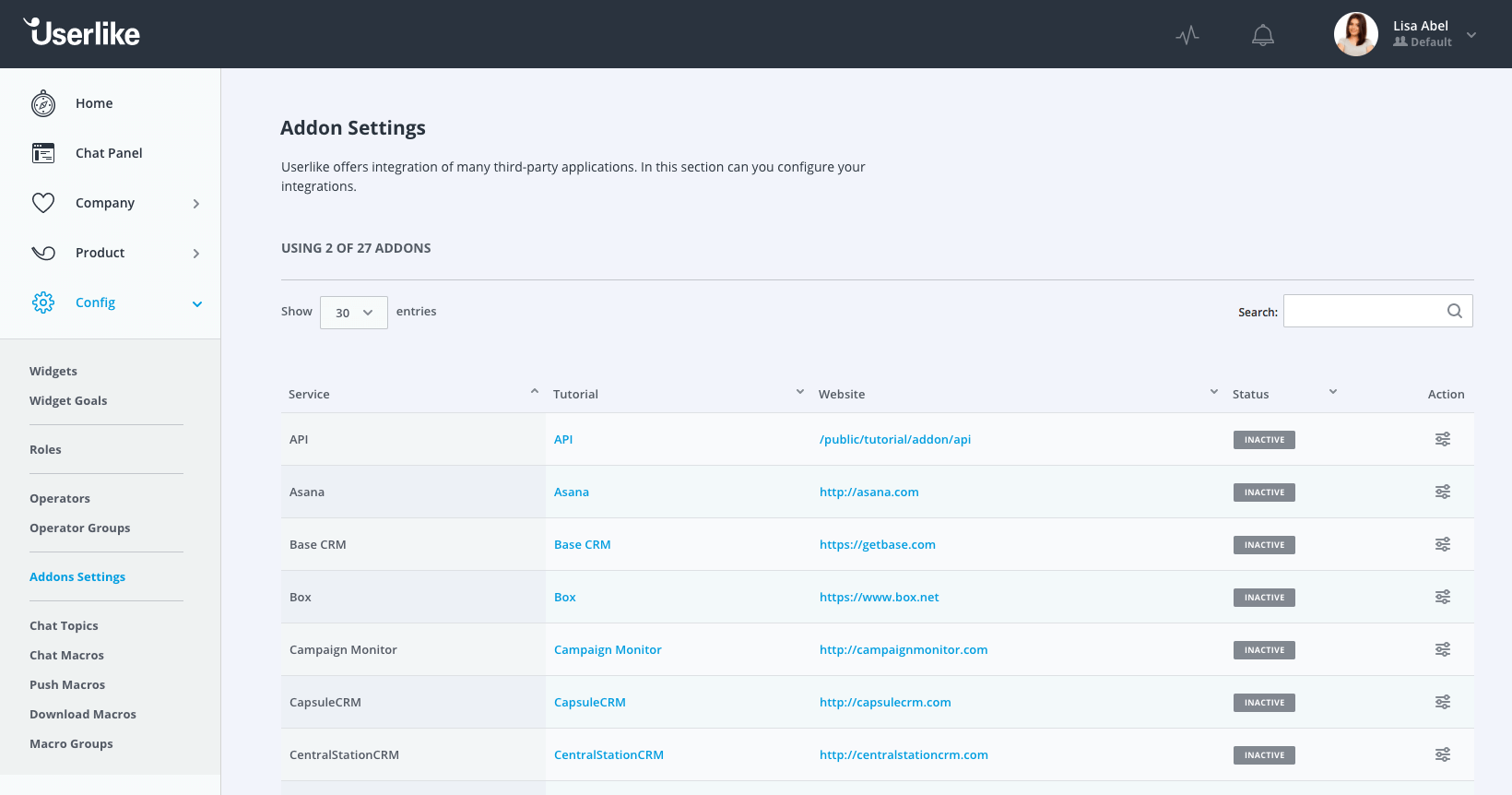

Our standardized **addon integrations** allow you to connect Userlike to your favorite business apps, like CRM, helpdesk and communication solutions, by sending chat data over to them. This can be in the form of offline messages, chat transcripts, events and more.

If your business uses Slack for its internal communication, for example, you can set up a dedicated Slack channel for receiving chat data from Userlike in real-time. You can configure in detail which type of data you want to send to Slack, so you only receive the notifications relevant to your team's support workflow.

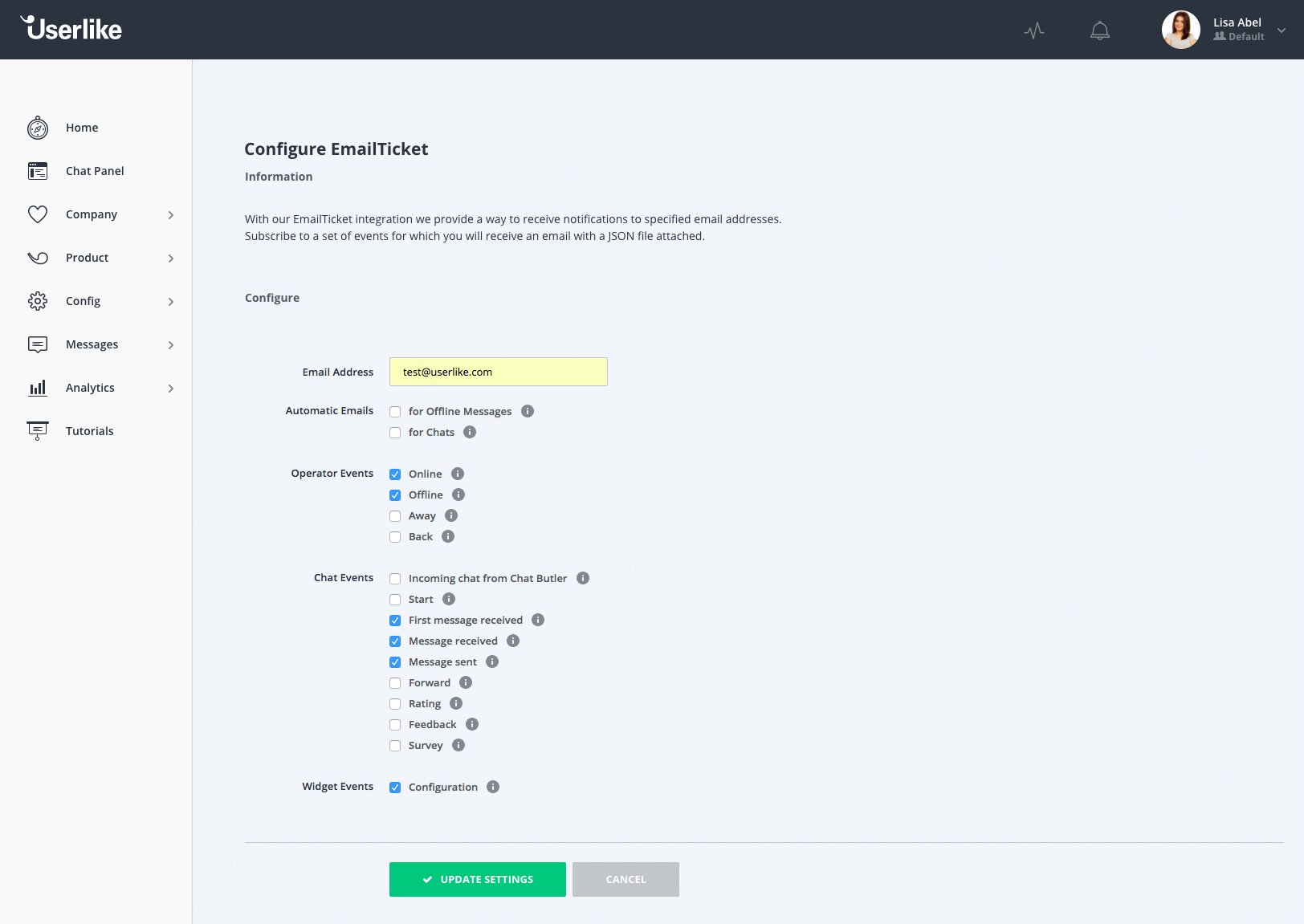

EmailTicket addon

With this addon you can send Userlike chat data to a predefined email address. Using email to transfer data from Userlike is often your best option if you have to support any legacy backoffice solutions.

Like with the aforementioned "Addon Integrations", you have fine-grained control over what type of data you want to send to that email address, so that you can tailor the data flow exactly to your needs.

Pushing data

If you want to have data from your Userlike chats in a custom backend or legacy CRM, you can use our **Callback API Addon** and push it to your custom solution. This data includes Webvisitor interactions like chat transcripts, offline messages, ratings or survey events, and Operator status events like Operator going online, offline, away or coming back.

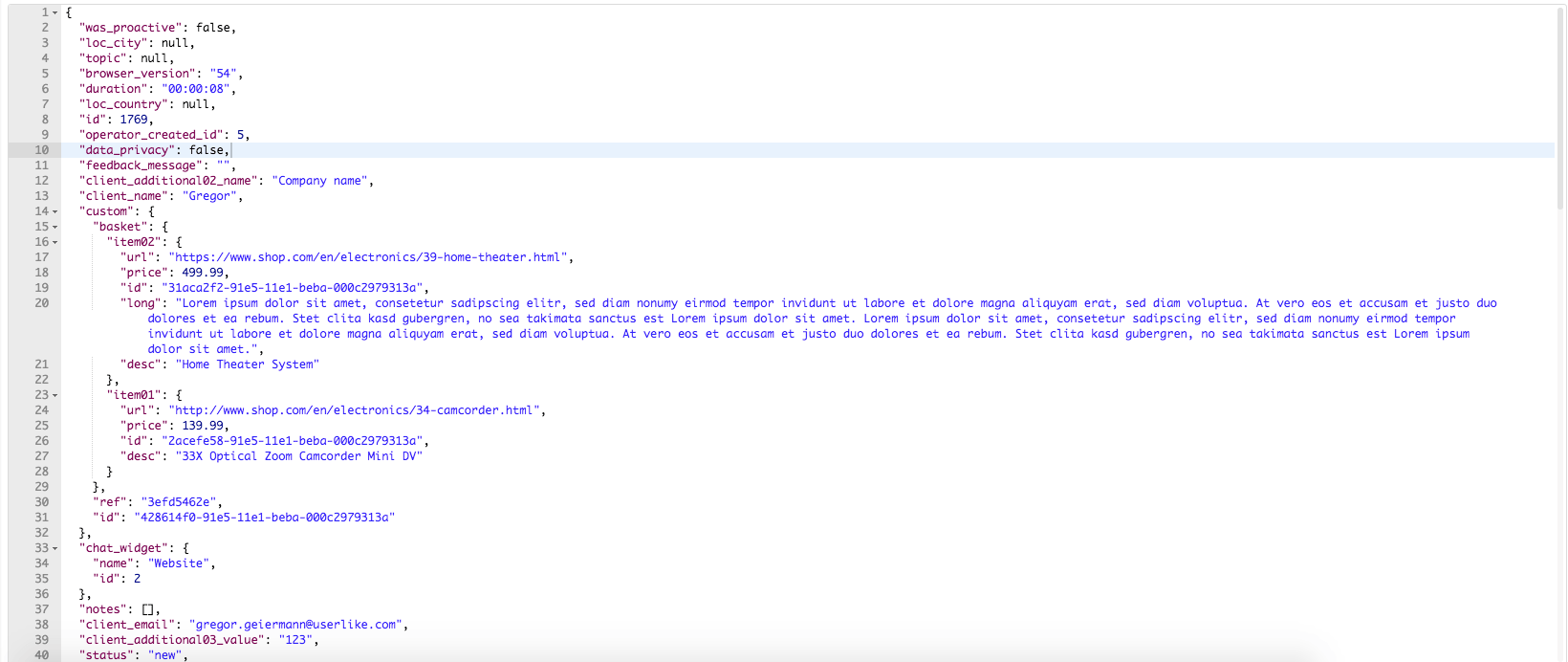

Pulling data

If you prefer to pull Userlike chat data in regular intervals into your custom backend or legacy CRM, follow this tutorial on how to retrieve data using our external API.

Using the API you can access your stored chat and Operator data in JSON format, fetching single objects or do a bulk import into your systems.

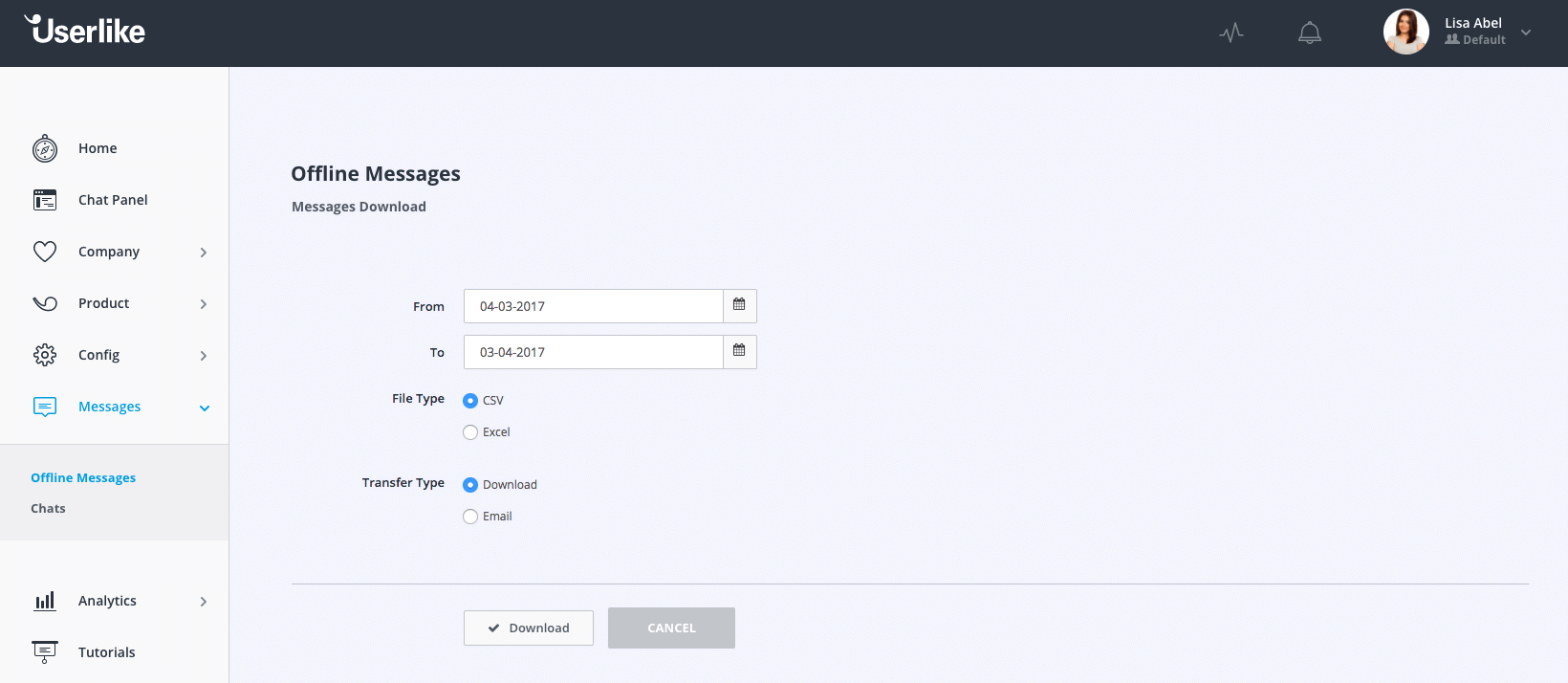

Downloading data

You can manually download larger sets of your chat data from Userlike to your computer, formatted as "CSV" or "XLS" format for direct consumption in Excel or other spreadsheet applications.

Extract offline messages by clicking "Download" in the message overview or chat transcripts by doing so in the chat overview, and limit the data set to download by defining a date range.

Tracking your chat system

You can track how Userlike is working for you overall and how specific measures that you took with the chat system performed. You can either use your default Dashboard Analytics or an external tracking tool.


Our Dashboard’s "Analytics" section offers data that reflects your chat performance. It is structured to give you quick and meaningful insights about your chat usage, helping you optimize your setup.

Popular tracking tools

By connecting the most famous tracking tools to Userlike, like Google Analytics, Matomo (formerly Piwik), KISSmetrics or Mixpanel , you can analyze your chats in relation to your overall website metrics, taking it a step beyond what your Dashboard Analytics tell you.

Integrating with your website tracking solution

If you are already using a website tracking solution for your website you might be interested in adding Userlike specific interactions to your tracking. Go to the tutorial.
