Chatbot API Tutorial

We recently enhanced our API to support interactive WhatsApp messages:
- You can send media and buttons to WhatsApp conversations via button template events
- You can let users choose between a list of up to ten options via list template events
- Bubbles are now supported as clickable buttons on Whatsapp

Chatbots can assist your team and take over boring and repetitive tasks such as gathering contact information, allowing your operators to focus on helping customers. They can also be useful as a way to answer simple questions after hours.

Besides using the Chatbot API, you can also write your own chatbot script using the Userlike Bot Language.

This tutorial will walk you through all the details you need to know to integrate a chatbot with our API.

Topic	Description
How to set up a chatbot	How to configure your chatbot to work with our API
Example chatbot flow	What a typical chatbot flow can look like
API overview	How our API works
Webhook	How our webhook calls are structured
Triggerable events	What events you can trigger after receiving webhook calls
Keeping state	How to use our API to keep state
Chatbot sessions	How chatbot sessions work
Sample Code	Sample code for chatbots

We assume that you already have a chatbot (framework) up and running that you now want to connect to the Userlike chat infrastructure. We also assume that your chatbot (framework) is reachable via HTTP. All you have to do now is to create a "proxy" chatbot in our Dashboard: Think of it as your chatbot's representative (or ambassador) in the Userlike chat infrastructure.

In Userlike, bots are a special type of operator. You can create a new chatbot by going to Unified Messaging Team Chatbots in your Dashboard. Click on **Add chatbot** to create a new chatbot.

Now you can configure your new chatbot:

The first name, last name and operator group settings are identical to those of a regular human operator. The bot type and bot behavior modes are explained below.

You can configure your chatbot in four different behavior modes. These modes decide in which situations your contacts will be connected to the chatbot, or whether its human colleagues are the preferred choice.

Bot behavior mode	Description
Service time	The bot is online only outside of the service time defined on the Widget. During service time, all chats go to your human operators.
Backup	The bot is always online but only takes chats when no other operators are available.
Human	The bot is always online and takes chats exactly like a normal human operator.
Firewall	The bot is always online and receives all conversations (e.g. to categorize and forward them).

After you have configured and saved your new chatbot, it appears in the bot overview, just beneath the human operator table.

From here you can edit it just like any other operator. After you've just added the bot, you need to edit it one time to configure the API settings.

If you edit an existing chatbot, you can additionally configure its API settings, change its profile picture and define how many concurrent chat slots your bot can handle.

Define a time with no reply from both contact and bot after which the conversation is considered inactive. Once this happens, the bot can perform one of the following actions:

**End conversation** and move it to **All conversations**.
**Unassign conversation** and move it to the Inbox, where any operator in your group can see and answer it.
**Forward conversation** to an available human operator from the same group.

Note that bot conversations don’t show up in your Inbox as long as they’re active. Your operators will only be able to see them once they end, are unassigned or forwarded.

So your chatbot has two possibilities to send messages to a conversation:

as a direct response to a chat event that has been sent to your **Webhook URL**.
as a self-initiated message to your Userlike **API URL**.

In most cases you will just send a response to our calls to your webhook. But when a call makes your chatbot do something that can take a while (like asking another web service), you can acknowledge the request via a response first, and then send the final result to the conversation once it is done.

After the bot is set up, you will receive a call to your webhook URL whenever a contact starts a chat with the bot. See request data

Your bot responds to the webhook request directly and sends a welcome text message, together with a bubbles element to offer the contact some choices: See response data

This is how it will look for the contact:

Once the contact clicks on "Delivery status of an order", you will receive a call to your webhook URL, containing all data from the click event. See request data

Your bot responds by asking the contact for the order ID. See response data

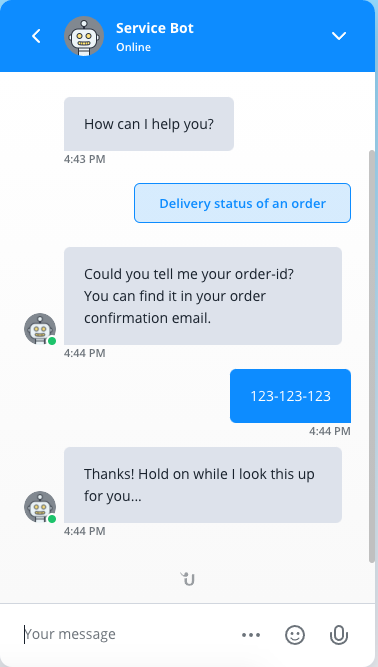

When the contact sends the order ID, you receive another call to your webhook URL. See request data

Since looking up all the delivery information on the order can take a while and requires a call to another webservice, your bot schedules an asynchronous job for it. To inform the contact and not keep them waiting, the bot also sends a short info message as a direct reponse to the webhook call. See response data

After the asynchronous job has finished, the bot makes a self-initiated call to the Userlike "API URL", sending the result of the delivery inquiry. See cURL example

Your chatbot handled your customer's request automatically, responding to all messages immediately and delivering time-consuming results once they were done.

Whenever a contact starts a chat and your bot is selected as a conversation partner, you‘ll receive a webhook call with a `start` event. From then on you will have the `cid` of the chatbot session, which can in turn be used to trigger events.

When the contact writes more messages in the conversation, you will also receive more webhook calls. They will contain the same `cid` as the `start` event has.

To react to incoming events, you can trigger various events yourself. For example you can send a message or forward the conversation to a human. Those events have a similar JSON structure as the incoming ones. To trigger them you can either directly respond to the webhook call, or you can send a request to our chatbot endpoint.

We offer to specify HTTP headers when you create or edit your bot in the Dashboard (see Webhook headers), which will be sent with each webhook call. We recommend that you generate a security token and use it in the headers, so you can verify that the webhook calls really originate from us.

To authenticate on our chatbot API endpoint, you have to generate another security token, which you can also enter when you create or edit a bot in the Dashboard (see API security token).

Currently we only offer one version of our chatbot API: /v1/

Endpoint URLs without version scheme will always default to the latest version.

Our APIs are constantly evolving, but we are striving to implement any new features in a backwards compatible way. If breaking changes are necessary, we will introduce a new API version. Examples for breaking changes are:

Removing, renaming, or moving API entities.
Changing or removing functionality.
Making optional parameters or properties mandatory.

Non-breaking changes, like new endpoints or new optional properties, can happen anytime.
When we deprecate older versions of the API, we will provide at least 90 days of notice.

Whenever certain events happen, you'll receive a POST Request on your webhook, which contains JSON data describing the event.

The event data looks like this. Note that the contact and widget objects were left out to keep the sample shorter. You can find the full object below.

The `info` object contains general information about the chatbot session, while the `packet` object contains event-specific information.

These are the keys of the `info` object:

Key	Type	Description
`cid`	`String`	Unique string identifier for the current chatbot session. You will need to include this, if you want to trigger an event in response to the webhook call.
`contact`	`Object`	Information on the contact. If the contact is visiting your site for the first time, this will not contain much. But otherwise this might contain useful information. Example
`context`	`Object`	You can use the context object to save state for a specific bot session. You can read more about this here: How to use our API to keep state
`conversation`	`Object`	Information about the current conversation, e.g. conversation URL, topic or channel. Example
`approach_mode`	`String`	The approach mode that was used to start the conversation. It is set to `"proactive"` if the messenger opened automatically, otherwise it is set to `"normal"`.
`widget`	`Object`	Information on the widget that was used to start the conversation. Example

Those events can be inside the `packet` object when your webhook is called:

Name Description

start

A new chat session with a bot was started. **You should use this event to send a welcome message to the contact.**
Payload parameters
Example

Name	Type	Description
`body`	String	Optional: The content of the message that the contact sent. Note: This is usually absent from the event, but in some cases (notably with contacts on messaging apps) it contains the message that initiated the conversation.

message

A new message from the contact was received.
Payload parameters
Example

Name	Type	Description
`body`	String	The content of the message that the contact sent.

media

A new file upload from the contact was received.
Payload parameters
Example

Name	Type	Description
`link`	String	The URL of the uploaded file Note that the URL is only valid for 15 minutes.
`mime_type`	String	The MIME type of the uploaded file

click

A contact clicked on an option of a bubble or carousel element.
Payload parameters
Example

Name	Type	Description
`option`	Integer	Index of the option that the contact clicked in the `options` list of the `carousel` or `bubble`. Please note that options are one-indexed, so the first option is referred to by `1`.
`value`	Object or string	The option that was clicked by the contact. If the click event comes from a bubble element, it contains the clicked option as a string. If the click event comes from a carousel element, it contains the whole option object, with its `headline`, `subheadline` and `media` keys.

forward_failed

A forward operation triggered by your bot failed because no operator was available. This is only sent if the `forward_group` or `forward_any` event that your bot sent contained an `on_failure` key set to `feedback`, otherwise the conversation is automatically unassigned and the webhook stops receiving updates.
This event has no payload parameters.
Example

location

This is only relevant for WhatsApp. They have a special message that allows users to send a location. If what happens you will get an event of this type.
Payload parameters
Example

Name	Type	Description
`description`	str \| null	Optional description contained in some locations. E.g. if somebody sends a Restaurant, this could contain its name.
`latitude`	float	Latitude
`longitude`	float	Longitude

To respond to the events sent to the webhook, you can trigger certain events yourself.

This is what an event looks like:

It always needs a `cid` specified inside the `info`. `packet` also always needs an event name. The `payload` differs for each type of event. In this case we have to provide the content of the message under `body`.

Events can be triggered by two in two ways:

You can include a list of event objects as JSON in your response to our webhook call.
You can also send the same JSON as a new request to our API endpoint. Example

Those actions are available:

Name Description

message

Send a message to the contact. You can use up to 5,000 characters.
Payload parameters
Example

Name	Type	Required	Description
`body`	String	Yes	Content of the message to be sent.

bubbles

Send a message to the contact, together with different buttons to click on. You'll receive a click event when the contact clicks on one of the buttons. This works for conversations that started on a website via our chat widget and partially works for WhatsApp and Facebook, but for those we recommend using `list_template` or `button_template`.
If a bubbles message is sent to a contact coming from WhatsApp or Facebook, we automatically try to convert it to an interactive message. For WhatsApp we convert when there ten or less options and each option label has 20 or less characters. Facebook also only allows up to 20 characters in option labels, but they allow up to 13 options. If the bubbles message exceeds the limits, or if the contact wrote via another messaging app, we convert the bubbles to text using the "fallback" parameter.
Payload parameters
Example

Name	Type	Required	Description
`body`	String	Yes	Message shown above the options.
`options`	List of strings	Yes	List of all options that the contact should be able to click.
`fallback`	String	Yes	On some messaging channels we cannot display the options as buttons, e.g. WhatsApp or Facebook Messenger. If so, we still show the options, but in a numbered list. Contacts can select them by sending the desired option’s number. In addition, we display this fallback text, which you can use to explain how they select an option.

carousel

Similarly to bubbles, but with images on the buttons. You'll receive a click event as a response.
Payload parameters
Example

Name	Type	Required	Description
`body`	String	Yes	Message shown above the options.
`options`	List of objects	Yes	List of all options that the contact should be able to click. Each option has to have those keys: `headline` (string): Headline of the option `media` (string): URL to the image that is displayed with the option `subheadline` (string): Subheadline of the option
`fallback`	String	Yes	On some messaging channels we cannot display the options as buttons, e.g. WhatsApp or Facebook Messenger. If so, we still show the options, but in a numbered list. Contacts can select them by sending the desired option’s number. In addition, we display this fallback text, which you can use to explain how they select an option.

button_template

Button template messages are made specifically for certain messaging-apps.
Currently supported messaging-apps are:
- WhatsApp
- Facebook Messenger
They consist of:
- An optional header. For Facebook only images are supported. Whatsapp supports text, an image, a video or a document.
- A message body shown below the header
- An optional footer
- **Up to three buttons**. When the user clicks them, you will receive a click event.
If a button template message is sent to a web-conversation, only the `body` and the options are shown. For not supported messaging apps we currently show a text version.
Parameters

Name	Type	Required	Restrictions	Description
`body`	String	Yes	<= 1024 chars	Message shown above the options.
`options`	List of objects	Yes	<= 3 objects	List of all options that the contact should be able to click. Each option has to have these keys: `label` (string): Text shown on the button (20 characters max) `id` (string): Can be used to recognize the option later. Not visible to the user.
`footer`	String	No	<= 60 chars	Text shown below the options.
`header_type`	String	No	text\|image\|document\|video	What type of header should be displayed. Facebook only allows type image.
`header_text`	String	No	<= 60 chars	Text inside the header; only when `header_type` is set to `text`. Not supported on Facebook
`header_url`	String	No		Link to media inside the header; only when `header_type` is set to something other than `text`
`fallback`	String	Yes		On some messaging channels we cannot display the options as buttons, e.g. Telegram. If so, we still show the options, but in a numbered list. Contacts can select them by sending the desired option’s number. In addition, we display this fallback text, which you can use to explain how they select an option.

Example Whatsapp

Example Facebook

list_template

List template messages are made specifically for WhatsApp. They consist of a message with:
- An optional headline text
- A message body shown below the headline
- A button prompting the user to open a selection screen
- A footer shown at the bottom of the message
The selection screen has:
- A headline shown above the options
- A list of **up to ten options**, each has a label and can have an optional description
- A submit button with the same text as the button prompting the select
If a list template message is sent to a non-WhatsApp channel it will still work, but some non-essential parts of the message will be lost.
Payload parameters
Example

Name	Type	Required	Restrictions	Description
`header`	String	No	<= 60 chars	Text shown above the message, before the user clicks to select something.
`body`	String	Yes	<= 1024 chars	Message shown before the user clicks to select something.
`button_text`	String	No	<= 20 chars	Text on the button prompting the user to select something
`list_header`	String	No	<= 24 chars	Text shown above the options in the selection screen.
`options`	List of objects	Yes	<= 10 objects	List of all options that the contact should be able to click. Each option has to have those keys: `label` (string): Main text shown on the list (24 characters max) `description` (string): Smaller text shown below (72 characters max) `id` (string): Can be used to recognize the option later. Not visible to the user.
`footer`	String	No	<= 60 chars	Text shown below the options in the selection screen.
`fallback`	String	Yes		On some messaging channels we cannot display the options as lists, e.g. WhatsApp or Facebook Messenger. If so, we still show the options, but in a numbered list. Contacts can select them by sending the desired option’s number. In addition, we display this fallback text, which you can use to explain how they select an option.

button (deprecated)

Displays a clickable button that opens the provided URL. Note that you will not receive any feedback if the button is clicked. This event is deprecated and will be removed with a future version of the Chatbot API. Please use the buttons event instead.
Payload parameters
Example

Name	Type	Required	Description
`body`	String	Yes	Text inside the button.
`link`	String	Yes	Button URL. Note that URLs starting with `file://` and `javascript:` are not allowed.

buttons

Displays multiple clickable buttons that open provided URLs. Note that you will not receive any feedback if the button is clicked.
Payload parameters
Example

Name	Type	Required	Description
`buttons`	Object	Yes	A list of objects describing the buttons. Each button object needs a "body" and "link" key. "body" is a string that is displayed on the button as text. "link" should be a string that defines the URL to open when contacts click the button.

media

Send a message containing an image, video or audio file. Please note that the media pointed to by the URL in `link` must stay reachable from our servers until the request is completely processed. If our systems fail to download your file (due to network outages, for example), you will receive an error response and should take appropriate measures to resolve the situation, e.g. by retrying.
Payload parameters
Example

Name	Type	Required	Description
`link`	String	Yes	URL of the media file.
`mime_type`	String	Yes	Mime type of the media file.

navigate

Make the contact navigate to a certain URL.
Payload parameters
Example

Name	Type	Required	Description
`url`	String	Yes	URL the contact will be navigated to. Note that the target URL must have the same host as the URL the contact is currently visiting.
`fallback`	String	Yes	If the contact’s browser does not allow navigation, this message will be sent to the contact instead. You can use `{{link}}` as a placeholder inside the fallback message, we will replace it with the target URL.

contact_update

Update the contact‘s name, email, mobile number, external id and custom fields. You only need to provide one of `name`, `email`, `mobile_number`, `external_customer_id` or `custom_fields`.
Payload parameters
Example

Name	Type	Required	Description
`name`	String	No	New contact name.
`email`	String	No	New contact email address.
`mobile_number`	String	No	New contact mobile number. Must be in international format.
`external_customer_id`	String	No	New customer ID.
`custom_fields`	Object	No	Update custom field information for a contact. Object keys should correspond to the IDs of the custom fields you wish to update, while the values represent the new data you want to assign to each respective field on the contact. For more information refer to the "Custom fields" section in the JSON API Tutorial.

abort

Stop bot interaction and continue normal conversation flow. The conversation is visible for and can be routed to human operators.
This event has no payload parameters.
Example

end

Terminate the bot session and set the 'ended' status on the conversation.
This event has no payload parameters.
Example

forward_group

Terminate the bot session and forward the conversation to any available operator from the given group.
Payload parameters
Example

Name	Type	Required	Description
`group`	String	Yes	Name of the group the conversation will be assigned to.
`on_failure`	String	No	If set to `"feedback"`, you will receive a `forward_failed` event if no operator is available and the forwarding fails. If this parameter is missing or set to `"unassign"`, the conversation will be unassigned instead.

forward_skills

Terminate the bot session and forward the conversation to any available operator who has all of the given skills.
Payload parameters
Example

Name	Type	Required	Description
`skills`	List of strings	Yes	List of the names of the required skills.
`on_failure`	String	No	If set to `"feedback"`, you will receive a `forward_failed` event if no operator is available and the forwarding fails. If this parameter is missing or set to `"unassign"`, the conversation will be unassigned instead.

forward_any

Terminate the bot session and forward the conversation to any available operator in the same group.
Payload parameters
Example

Name	Type	Required	Description
`on_failure`	String	No	If set to `"feedback"`, you will receive a `forward_failed` event if no operator is available and the forwarding fails. If this parameter is missing or set to `"unassign"`, the conversation will be unassigned instead.

delay

Delay messages by a specified amount of time. During the delay, contacts will be presented with a typing indicator by default.
Delays only affect subsequent messages in the same response/request, so sending a delay only really makes sense when sent in a list of actions.
Note that a delay doesn’t prevent contacts from sending a message.
Payload parameters
Example 1
Example 2

Name	Type	Required	Description
`delay`	Number	Yes	The delay in seconds.
`composing`	Boolean	No	If true, contacts will be presented with a typing indicator. Defaults to true.

note_create

Create notes during the current conversation. This event can create notes referring to the contact or the conversation. If you set the `contact_identity_id` in the packet’s payload, a note for the contact will be created, otherwise the note will be created for the conversation.
Payload parameters
Example 1
Example 2

Name	Type	Required	Description
`body`	String	Yes	Note content.
`contact_identity_id`	Number	No	Optional reference to the ID of the contact the note refers to. If omitted, a conversation-based note will be created and appear below the latest message in the conversation’s message history.

We allow you to keep session-specific state in our API.

On each webhook response or API request, you can provide a `context`, which can be any valid JSON object. Just make sure it’s not bigger than 10 KB.

After you set a context, we will echo the same object in each webhook request we send to you. Note that we will completely overwrite the previous context object, if you provide a new one. If you send us an empty context, we will ignore it and keep the previous one.

Chatbot sessions are started when a conversation is started on your widget, while a bot is configured with a matching behavior mode.

After the session starts, it stays open for a defined timeout without messages or other chat activity. The timeout can be configured in the widget settings under 'Live conversation timeout'.

Right now there is no way to resume an expired session.

Chatbot API Tutorial

Introduction

Chatbot setup in Userlike

Bot type

Bot behavior modes

Bot conversation timeout

Webhook URL

API URL

Webhook URL vs. API URL

API security token

Webhook headers

Example chatbot flow

Contact starts a chat

Contact selects delivery status

Contact sends order ID

Chatbot sends result

API Overview

Authentication and Security

Rate limits

Versioning

Webhook protocol

Info object

Webhook Events

How to respond

Triggerable events

Keeping state with the context object

Chatbot sessions

Python server example
